Description
| Specifications
| Product Overview | Value |

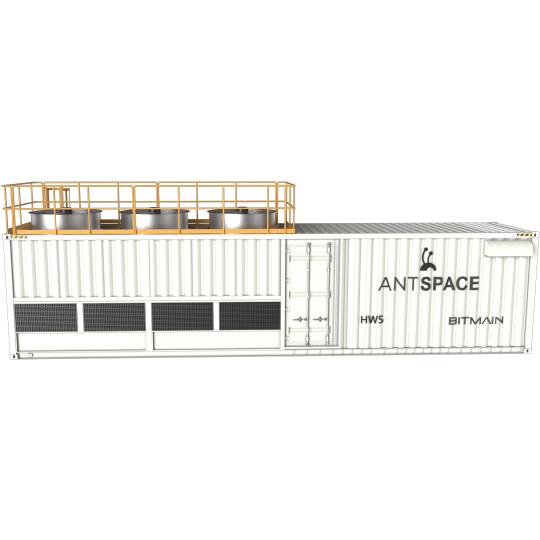

| Model | ANTSPACE HW5 |
| Version | V1 |
| Dimensions (l*w*h), mm | 12192×2438×2896 |
| Miner capacity | 210 units S23 Hyd. & S21 Hyd. & S19 Hyd. Series miner |
| PUE@25℃ ambient temperature | 1.032 |
| Container certification | CSC |
| Safety certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009 |
| PUE(Power usage effectiveness) | 1.032 |
| Input voltage and frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 14 |
| Operating weight, T | 24 |
| Main switch of power distribution cabinets, A | 1200*2 |
| Rated current, A | ≤986*2 |
| Rated Current per Miner, A | ≤10 |
| Normal power, kW | 1200 |
| Inlet cable(1-1) | The inlet copper cables can withstand voltage of above 600V, with the following requirements: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N Single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2 |
| Flow rate, m³/h | ≥85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer | 2 |
| ANTSPACE HW5 Dry-Wet Tower Cooling Module | |
| Heat Dissipation Capacity, kW | 1200 |
| Outlet Temperature @ 28℃ Wet Bulb Temperature, ˚C | 35 |
| Operating Power, kW | ≤15~29 |
| Water supply pipe Interface | DN40(Internal thread) |
| Drain Pipe Interface | DN65(Internal thread) |
| Noise level @25℃, 15m, dBA | 70 |
| Water Consumption, m³/h | 0.7~1.3 |
| Inner Coolant Usage, m³ | 1.6 |
Notes:
(1) For aluminum cables, refer to electrical specifications and use copper-aluminum composite terminals that meet standard requirements.
| Points For Attention
| 1 | The ANTSPACE must be placed on a flat ground with a level of ±1 degree. |
| 2 | The surface ground needs to be hardened and aimed to hold the ANTSPACE to be stable to withstand the load of at least 36-tons (1.5 times safety factor of operating weight). |
| 3 | The customer should prepare a crane with a minimum lifting capacity of 20 tons for loading and unloading ANTSPACE equipment. |
| 4 | Stairs, walkway boards, transformers, cables, bridges, cable distribution boxes, and other external facilities are not included in ANTSPACE products. |
| 5 | If you plan to store ANTSPACE units vertically on top of one another, please advise the BITMAIN sales team regarding the preferred opening direction for the door facing the air inlet of your ANTSPACE unit. The door opens to the left by default. |
| 6 | Leave at least 2m of air inlet space around the cooling tower. |
| 7 | Operating elevation: lower than 2000m. If the height is more significant than 1000m and a 2500kVA transformer, the number of ANTSAPCE units installed in one ANTSPACE unit must be decreased by around 1%. |
| 8 | Environmental requirements: Temperature: -25°C~40°C; Humidity 10%RH~90%RH; The ambient temperature requirement in high-humidity areas is not higher than 40°C. When the ambient temperature is lower than 0°C, the inlet and outlet shutters need to be closed, and the inner coolant of the miners can only be started when it is heated to above 20°C. |
| 9 | The ambient temperature of the ANTSPACE does not represent the ambient temperature of the miners. |
